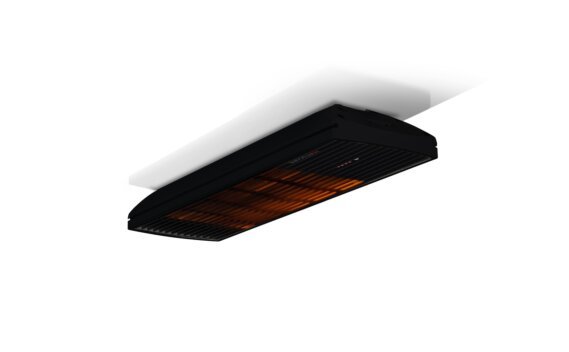

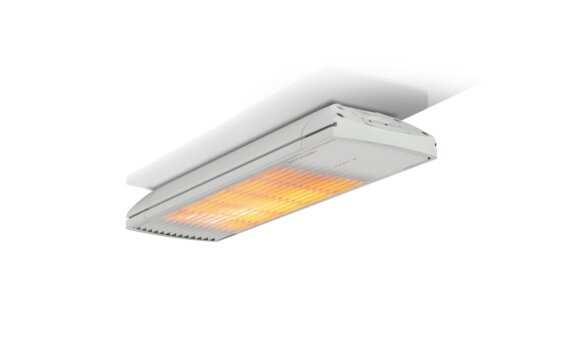

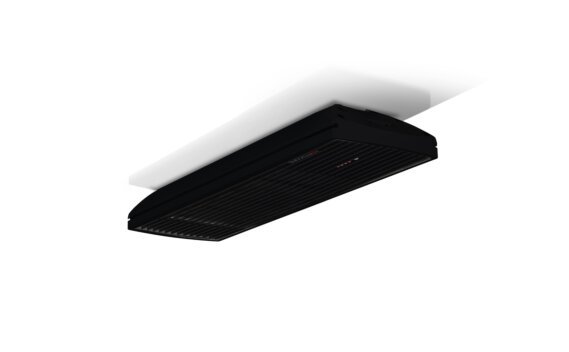

Spot 1600W Electric Radiant Heater
No Aggressive Red Light - Produces
a very ambient modest light
HEATSCOPE® Spot radiant heaters produce a subtle orange glow which is only 30-40% of the light output of the traditional radiant heaters. The reduced light output is due to the use of a color matching grill screen in front of the satin surface carbon heating elements that can be either a black or white. They are midwave radiant heaters that produce heat almost instantly (less than 15 seconds) and are ideal for providing heat to outdoor areas such as partially open patios or balconies.
Configure & Buy
Buy online and get it delivered to your door.
Customer Inspiration #heatscopeheaters
Key Features
Efficiency made simple
HEATSCOPE® is committed to efficiency! All VISION, SPOT and PURE radiant heaters were developed in accordance with the newest findings concerning the mid-wave IR range. This means that between 90% and 94% of the energy used is turned directly into ambient heat.
Real infrared
All HEATSCOPE® design radiant heaters produce natural infrared heat in the (fast) mid-wave IR range. This means that the heat feels particularly pleasant and is effective exactly where it is needed – that’s directly under the first layers of skin, but not too deep in the tissue.
Inviting & cosy
Other radiant heaters use light tubes to produce heat as a by-product – at HEATSCOPE® we exclusively use innovative carbon technology: two carbon spirals are powered with an electric current, they begin to glow and produce a particularly pleasant warmth.
Super fast
Output peaks are a thing of the past with HEATSCOPE® power heaters. Although the heaters start up slowly, they reach 100% in no time: the range of SPOT models take only 15 seconds, and the VISION & PURE range takes a maximum of 30 seconds owing to the glass front.
Full control
The separate model ranges are either delivered with their own IR remote control or with a 4-wire cable for integration into an external control system (output dependent).
Award-winning design
Delivers pleasant heat without the distraction. Clean-cut, modern designs and colours easily blend into any decor.
Weather-resistant
All models are certified with an IP rating for protection against dust, splash-water, and wind.
No aggressive red light
Produces a very ambient, modest light based on double carbon heating elements.
High efficiency
Up to 94% of the energy used is turned into ambient heat and transferred directly to nearby people and surfaces for maximum efficiency.
Technical Specifications
Installation Height
Power / Current
Voltage
Max. Power In
Radiant Efficiency
Visible Light
Coverage Area

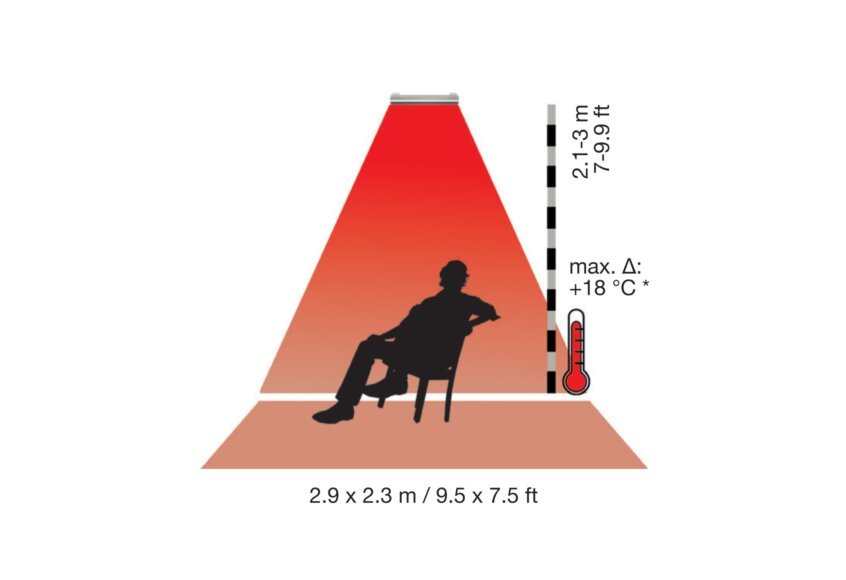

This graphic shows the heating performance of Heatscope Spot 1600W heaters. Please note that the heat output always depends on a wide range of factors.
They include: Installation environment (indoors or outdoors, enclosed or open, wind-protected or wind-prone), installation height, radiation angles, weather, voltage fluctuations, etc.
Please consider all these factors in your planning.
*All values are approximate. Max. temperature increases achievable in enclosed spaces at 16 °C (dependent on the respective installation conditions and mounting height).
Construction
- MPN (Black) MHS-SP1600AB.100
- MPN (White) MHS-SP1600WT.100
- Weight 4kg [8.8lb]
- Model Dimensions mm [in] L 670mm [26.4in] W 184mm [7.2in] H 78mm [3.1in]
- Colours
Accessories
Includes everything you need to easily operate and protect your investment for many years to come.
FAQ's
View AllCan all HEATSCOPE® heaters be mounted on the wall or ceiling?
Yes. All models are supplied with a bracket for wall or ceiling mounting.

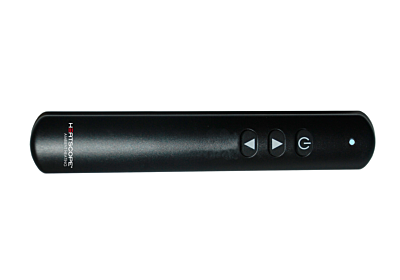

How does the remote control work?
The remote control has 2 buttons so you can choose to turn on/off each carbon heating element individually for 50% or 100% heat. Alternatively, you can use your smartphone or tablet as remote control via the eWeLink app.
Can I install the HEATSCOPE® heater in my bathroom?
The heater must not be installed in rooms where there is high humidity (bathroom, spa, etc) or in close vicinity to bathtubs, showers or pools.
Is there any heat loss with infrared radiant heaters?
There is hardly any heat loss, unlike with conventional electric heaters and gas patio heaters. In fact they are very economical and will produce maximum heat output in less than 60 seconds.
What heating accessories are available?
We have a range of optional accessories to help you achieve your project needs. The Dual WiFi Smart Switch allows you to connect the heater to a smartphone or tablet. The Zigbee Wireless Switch (Remote Control) and Zigbee Motion Sensor provide excellent range, and all these accessories will work anywhere in your home when WiFi is available. We also offer a weather shield to help protect your appliance from outdoor elements if they are not under cover. Please visit our website for more details on the available accessories.
Where is the power cable of the infrared heater located?
For Vision and Spot models, the power cable is located on the side of the appliance. Pure is equipped with a cable latch for ease of installation.
How do you turn the heater on?
Your HEATSCOPE® radiant heater needs to be connected to an electrical circuit. It can then be turned on via a wall switch, a remote control or a smartphone. Please check our optional accessories available.
Can HEATSCOPE® heaters be mounted directly on a wooden structure?
HEATSCOPE® infrared heaters are supplied with optional mounting accessories such as extension rods. When used, it is safe to mount the appliance to the wood supporting structure as it provides the minimum clearance from combustible materials.
